CapIt - The Smart Capture Solution for EDIUS Workflows
EDIUS 11, X, 9 users can purchase the full version of CapIt for an attractive price. This and other plug-ins and tools can be purchased at your local EDIUS reseller or directly in the Online shop.
Download the Test version for a 30-day free trial here.
CapIt is a powerful and versatile capture tool designed to significantly extend the native capture module of EDIUS. Running in the background alongside EDIUS, CapIt supports modern workflows such as NDI, streaming media, and GPU‑accelerated MP4 encoding. It is a flexible, feature‑rich extension that integrates seamlessly into EDIUS.
With CapIt, you can record from a wide range of sources, including USB cameras, Blackmagic DeckLink cards, NDI streams, RTMP/HTTP/RTSP/SRT feeds, Z‑CAM devices, and even smartphone screencasts. It supports real‑time encoding in H.264/H.265 MP4 with GPU acceleration, as well as Grass Valley HQ/HQX and AVC‑MXF formats for professional workflows. For projects under high production pressure or live applications such as replay, CapIt enables editing during ongoing recording via growing MXF files — allowing you to start editing in EDIUS without waiting for the recording to finish.
Beyond compatibility, CapIt offers practical features that make a real difference: pause and resume recording, automatic file splitting, date‑based folder organization, and live video functions such as logo overlays, blur, and mosaic effects. Audio handling is equally advanced, with independent audio capture, channel monitoring, and conversion into broadcast‑ready standard formats.

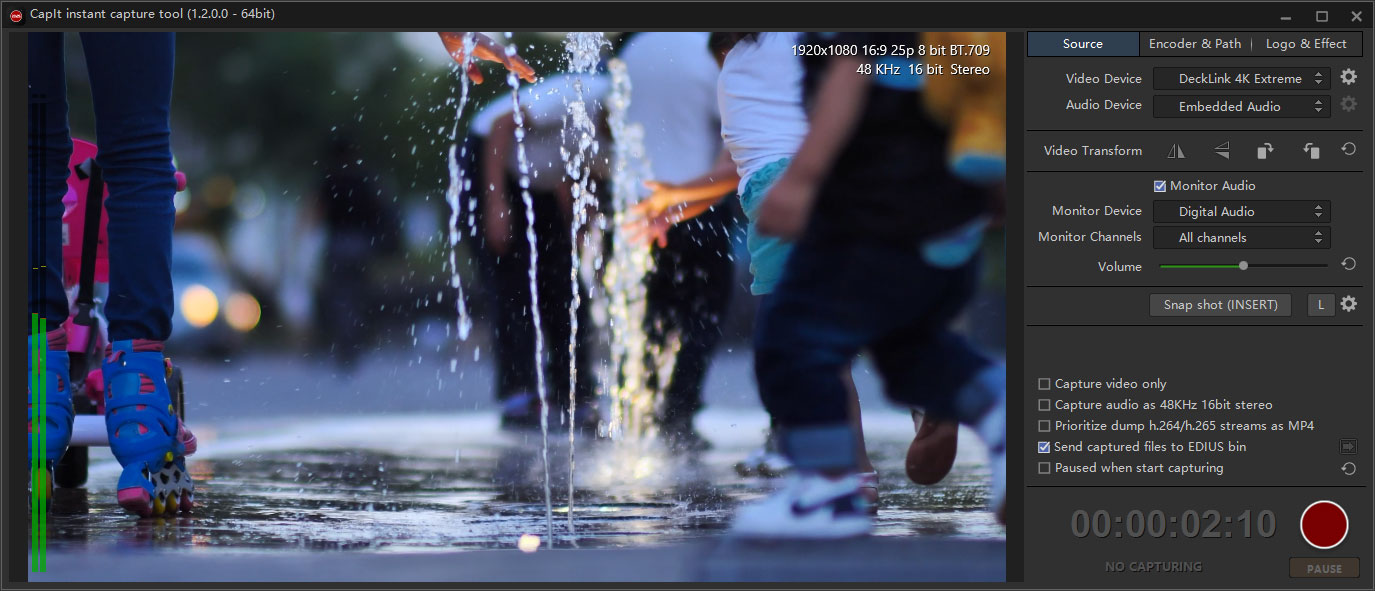

CapIt is more than just a capture tool — it is a workflow optimizer. By combining broad input support, real‑time processing, and direct integration with EDIUS, it ensures your production pipeline is faster, more flexible, and fully equipped for today’s demands. For EDIUS users who need more than basic capture, CapIt is the perfect solution.EDIUS Support
- Accessible directly from EDIUS via the “Tools” menu after installation
- Main window can be minimized to the tray
- Recorded files can be automatically imported into the EDIUS bin

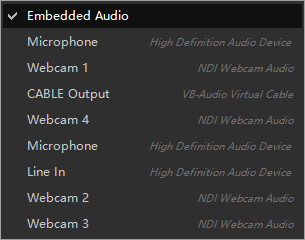

Capture Various Video/Audio Sources
Support USB Camera, Decklink, NDI, streaming media, Z-CAM, phone screen cast, and Windows audio input devices.

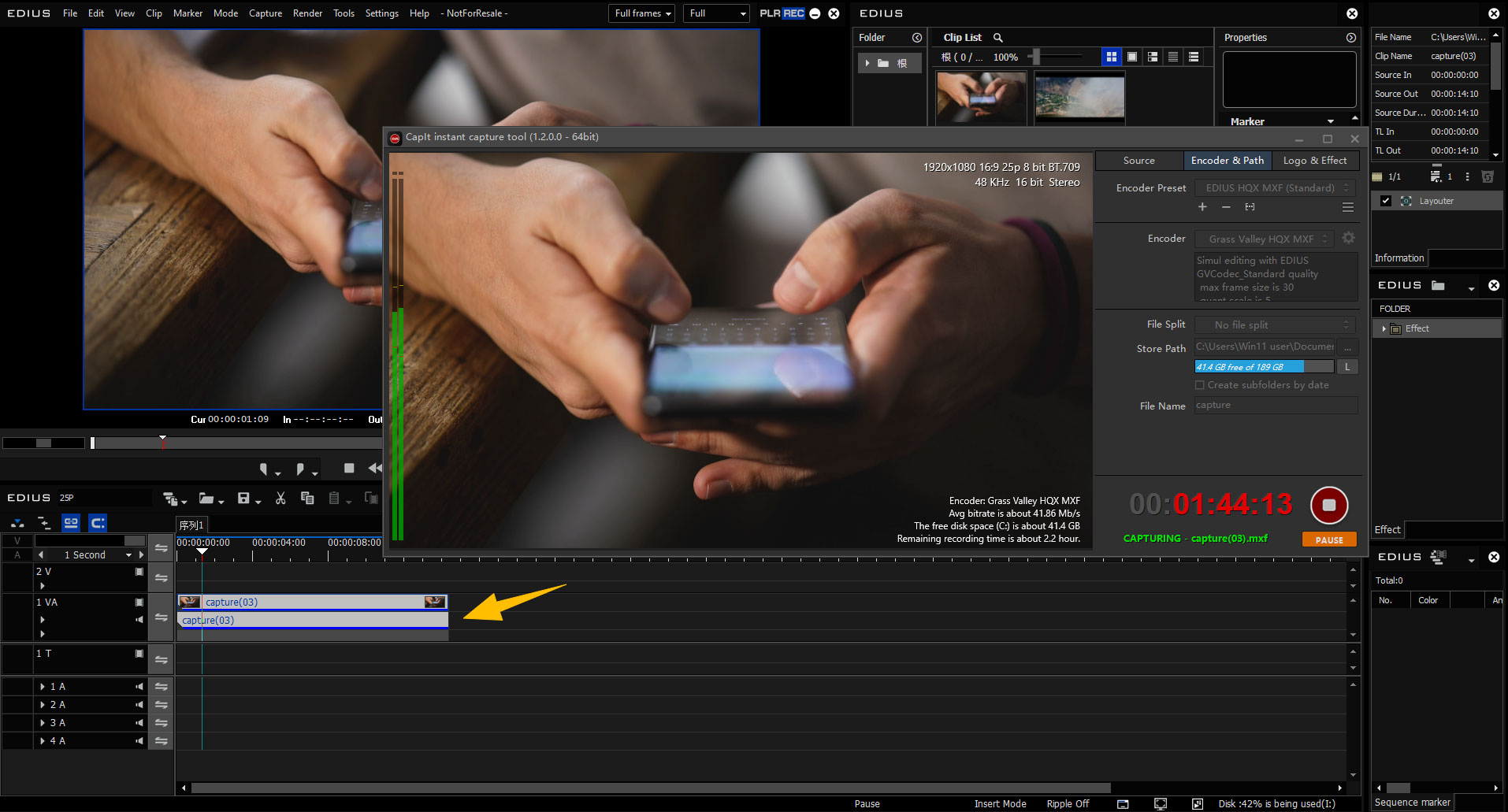

Growing MXF – Editing While Capturing
The encoders that support editing while capturing are AVC MXF, Grass Valley HQ MXF, and Grass Valley HQX MXF.
Tip: EDIUS Workgroup (versions 9, X, and 11) as well as EDIUS 11 Broadcast support editing while capturing. EDIUS Pro versions do not include this feature - editing begins once the recording has been completed.
Logo Overlay
Enable this option to embed a logo directly into the recorded video signal.

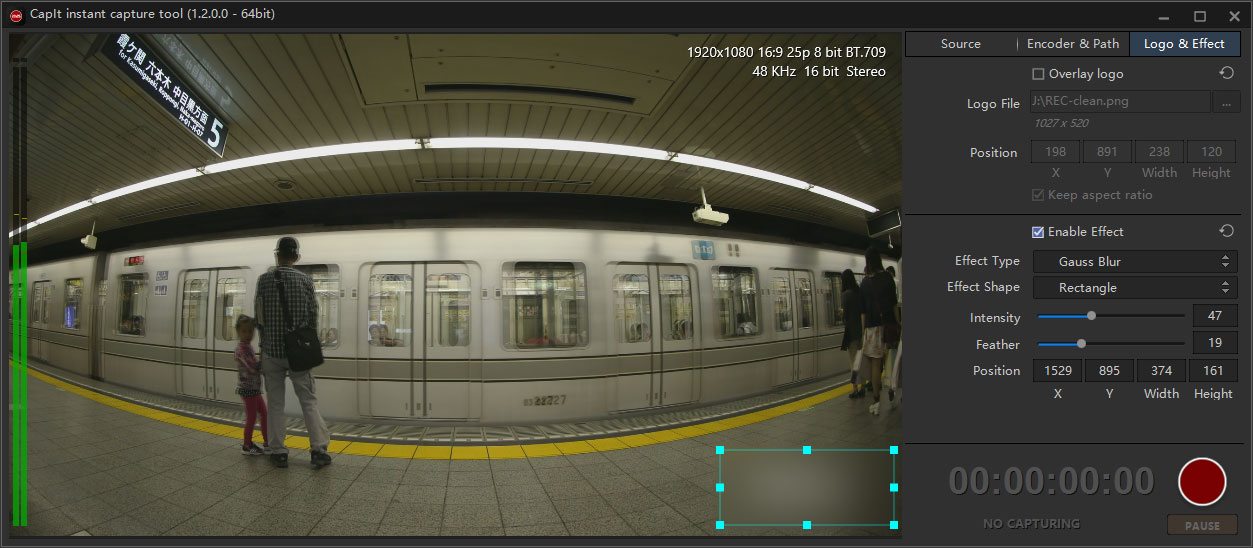

Mosaic & Gauss Blur Effect
Use these settings during recording to apply a Gaussian blur or mosaic filter to the selected area. The recorded file will immediately contain the blurred or pixelated result in that region. This is particularly useful for data protection scenarios where certain areas must not be captured at all.
More…

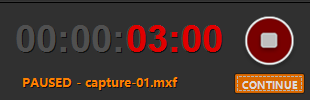

Capture Pause/Continue

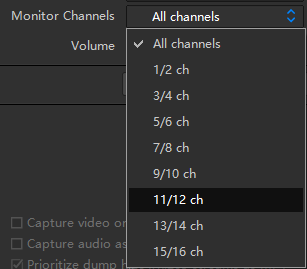

Monitor audio selected channels

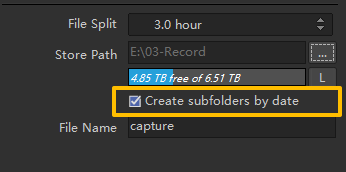

Create subfolders by date

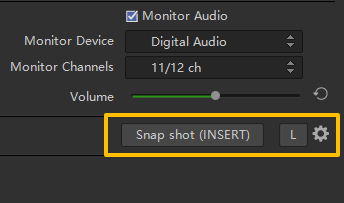

Snapshot: Create a still image from the live signal.

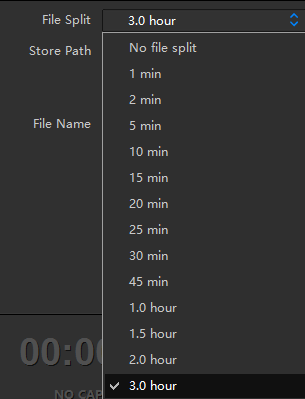

File Split capture: Split the video into clips ranging from 1 minute up to 3 hours in length

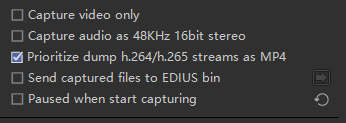

Save H.264/H.265 streams directly as MP4 without any loss of quality
Specification
| Signal Source | |
|---|---|
| Decklink Card | |
| USB Camera | |
| NDI | NDI FULL bandwidth or NDI HX |
| Streaming Media | rtmp/http/rtsp/srt |
| Z-CAM | stream0 or stream1, support high framerate |
| Encoder | ||
|---|---|---|
| H.264 | GPU encoding, recommend NVIDIA/AMD discrete graphics card | mp4 |
| H.265 | GPU encoding, recommend NVIDIA/AMD discrete graphics card | mp4 |
| Grass Valley HQ | CPU, standard resolution | avi |
| Grass Valley HQX | CPU, any resolution | avi |
| H.264/AVC | GPU encoding, recommend NVIDIA/AMD discrete graphics card | MXF |
| Grass Valley HQ | CPU, standard resolution | MXF |
| Grass Valley HQX | CPU, any resolution | MXF |
| Functions | |
|---|---|
| Mini Tray Capture Window in the taskbar | |
| Capture Video Only | |
| Capture Audio Source Independently | |
| Convert Audio to 48KHz 16bit Stereo | |
| Original Stream Capture | Streaming Media, Support Z-CAM Camera |
| Send to EDIUS Bin after Capture | Support EDIUS 9/X/11 |
| EDIUS Tool Bar Plugin | Support EDIUS 9/X/11 |
| Segmented Capture | |
| Encoder Preset | |
| Adjustable Encoder Parameters | |
| Supports 24 bit or 32 bit audio capture | |
| Audio 16-channel capture | |
| Editing while capturing | Support EDIUS 9/X/11 |
| Support pause/continue capture | |
| Snapshot | |
| Create Date Folders Automatically | |
| Automatic Naming | |
| Real-time Overlay Adjustable LOGO | |
| Gaussian Blur or Video Mosaic in Real Time | GPU Render, Recommend Discrete Graphics Card |
| Real-time Analysis of Bit-rate and Recordable Duration | |
| Low Disk Space Warning | |
| Automatically stop capture when disk space is running out | |
| File damage prevention mechanism | |
Configuration
OS Supported
Windows 64bit 10/11
Minimum Configuration for HD Capture
CPU: Intel i7 8 Cores 16 Threads
Memory: 16G
Graphics Card: NVIDIA 1060
Minimum Configuration for 4K Capture
CPU: Intel i9 12 Cores 24 Threads or Ultra 9
Memory: 32G
Graphics Card: NVIDIA 3060
Tip: GPU encoders do not require high CPU requirement. Grass Valley HQ/HQX is based on CPU encoding. The higher the CPU performance, the better.
